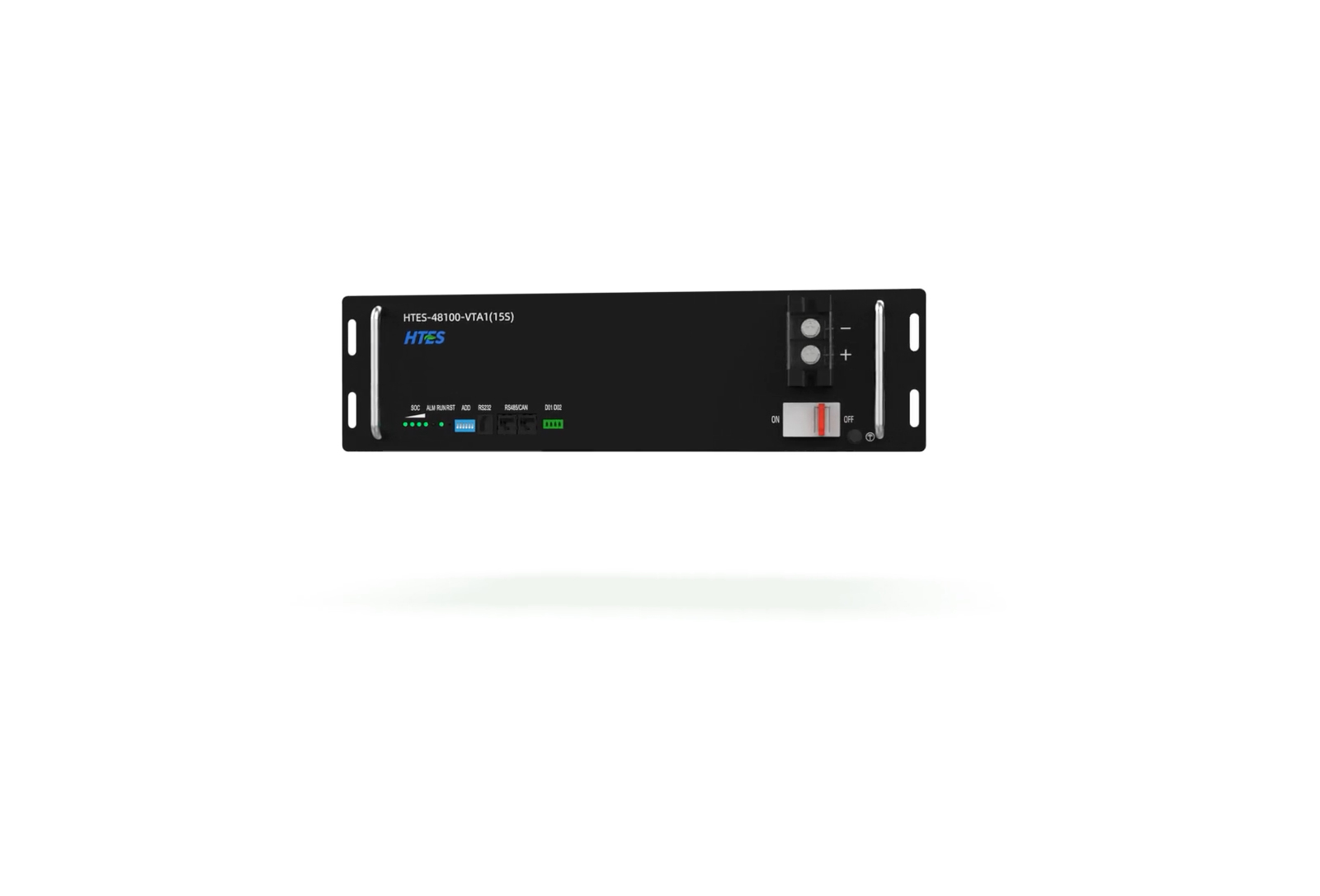

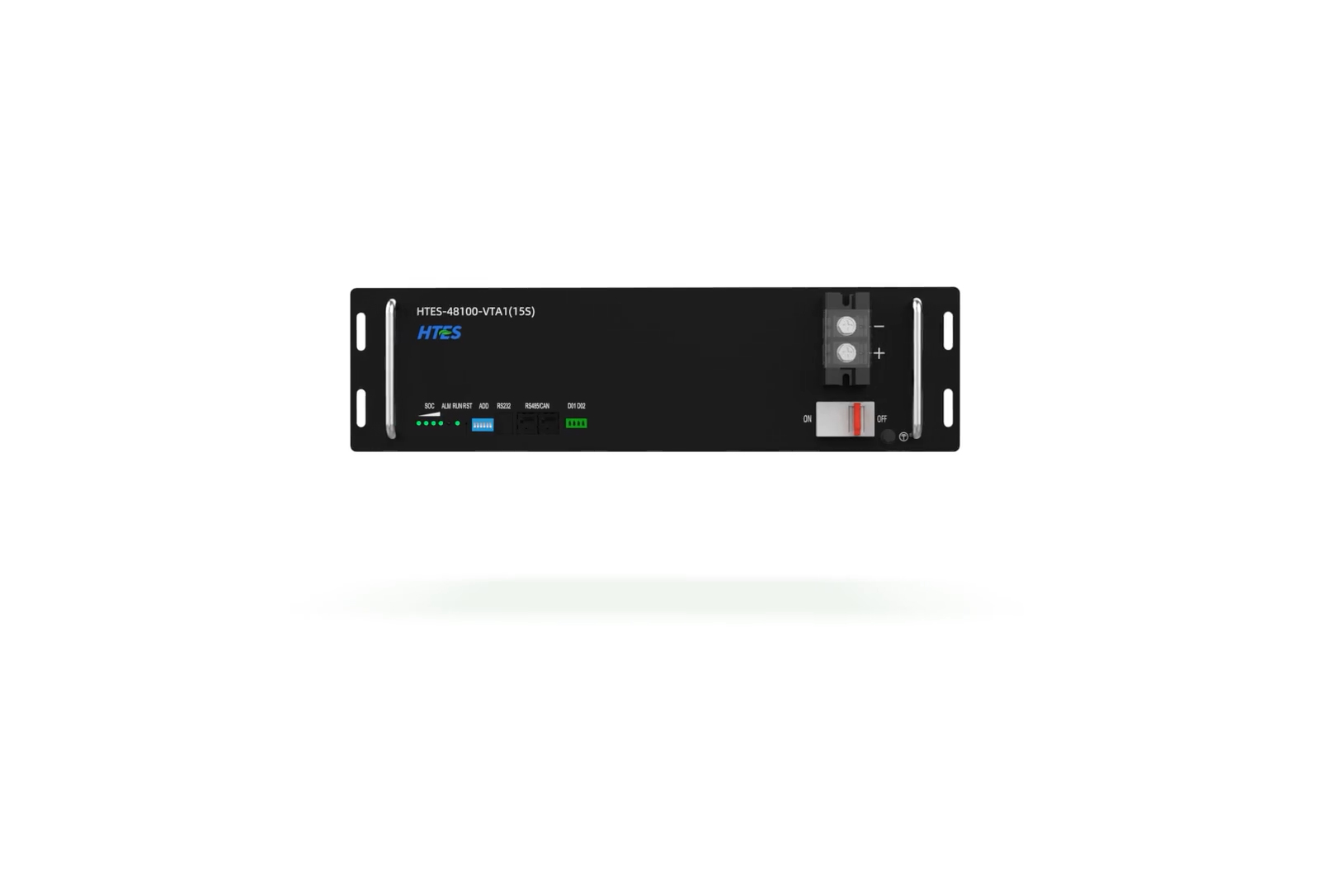

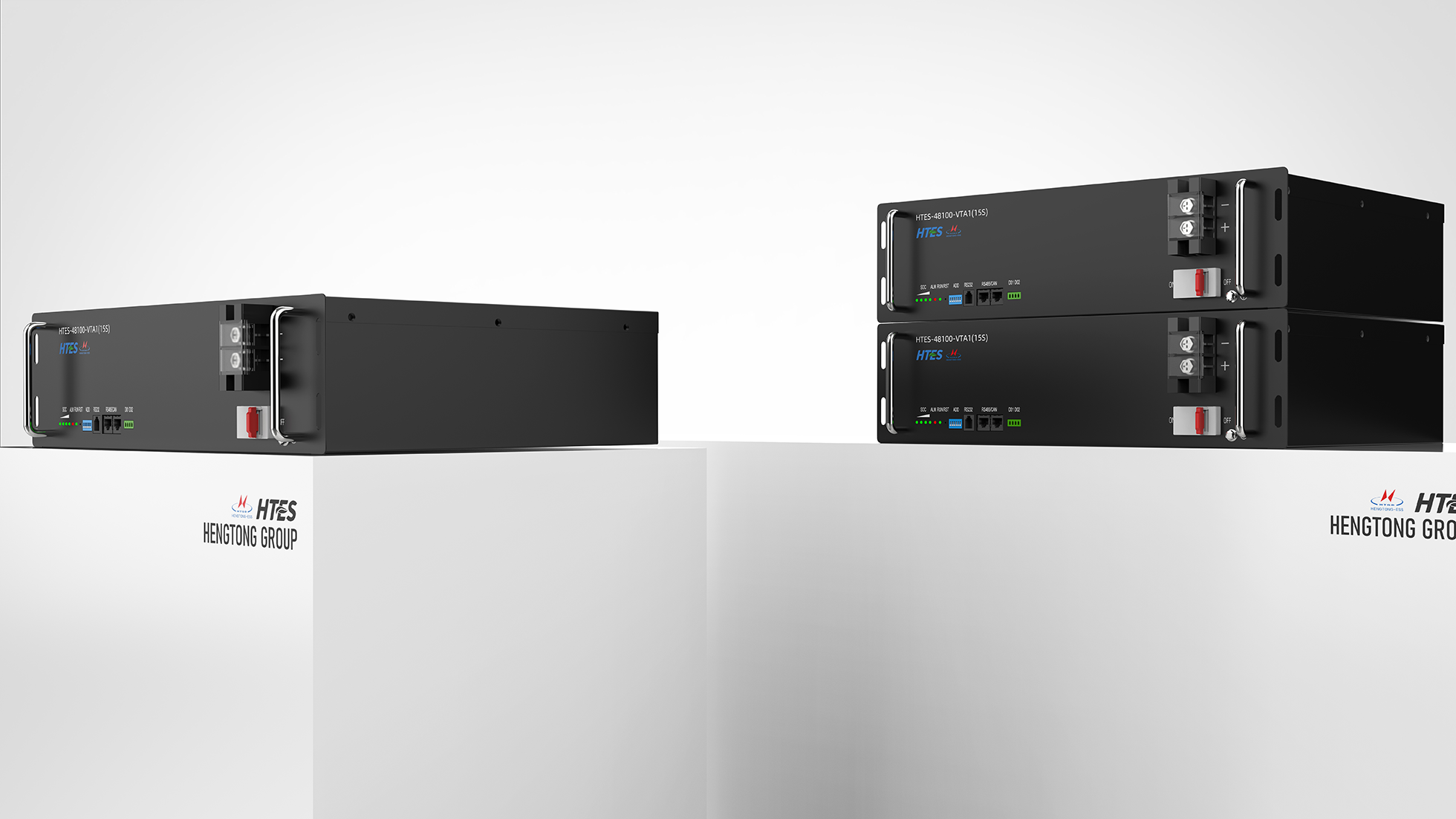

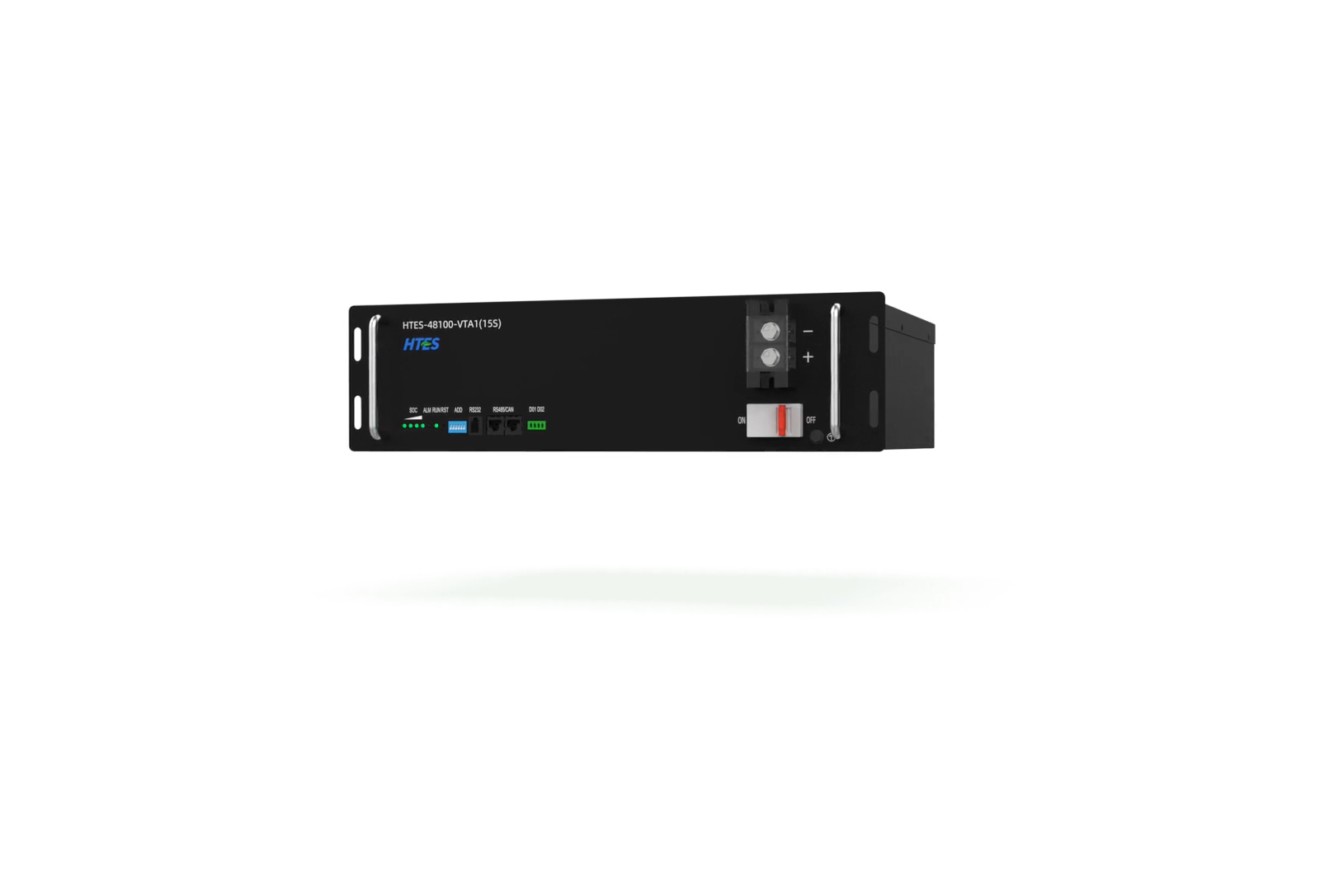

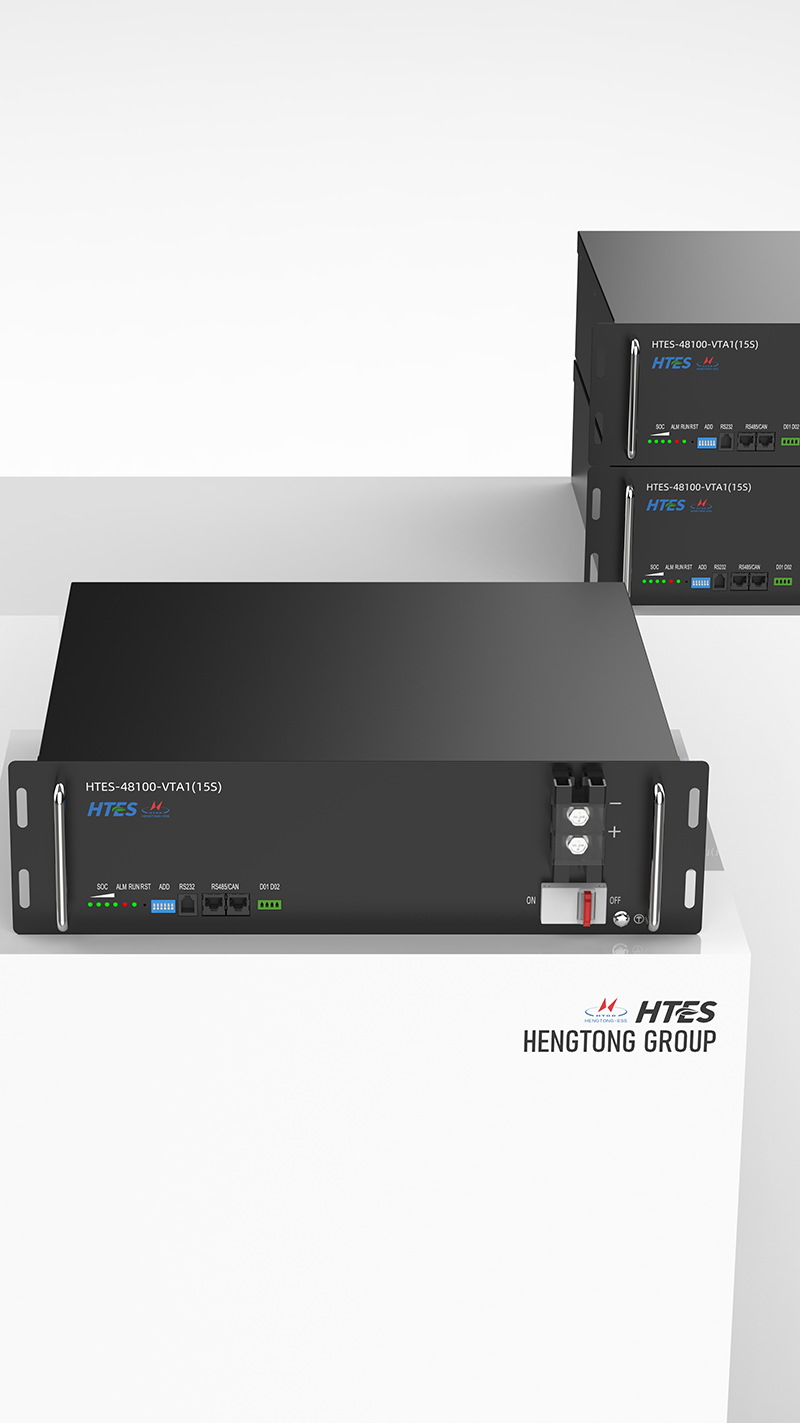

MOKE 48100

Hentong Energy storage's communication power solution is widely used in operator ICT sites. It adopts an integrated design, supports multiple energy inputs (such as AC power, solar power) and stable voltage output, meets the current site deployment requirements with one cabinet per site, and supports expansion and network upgrades, helping to achieve a low-carbon network.

3U standard chassis, high compatibility

Real-time monitoring of battery cells

Advanced battery management system, safe and reliable

Precise SOC algorithm, automatically calibrated

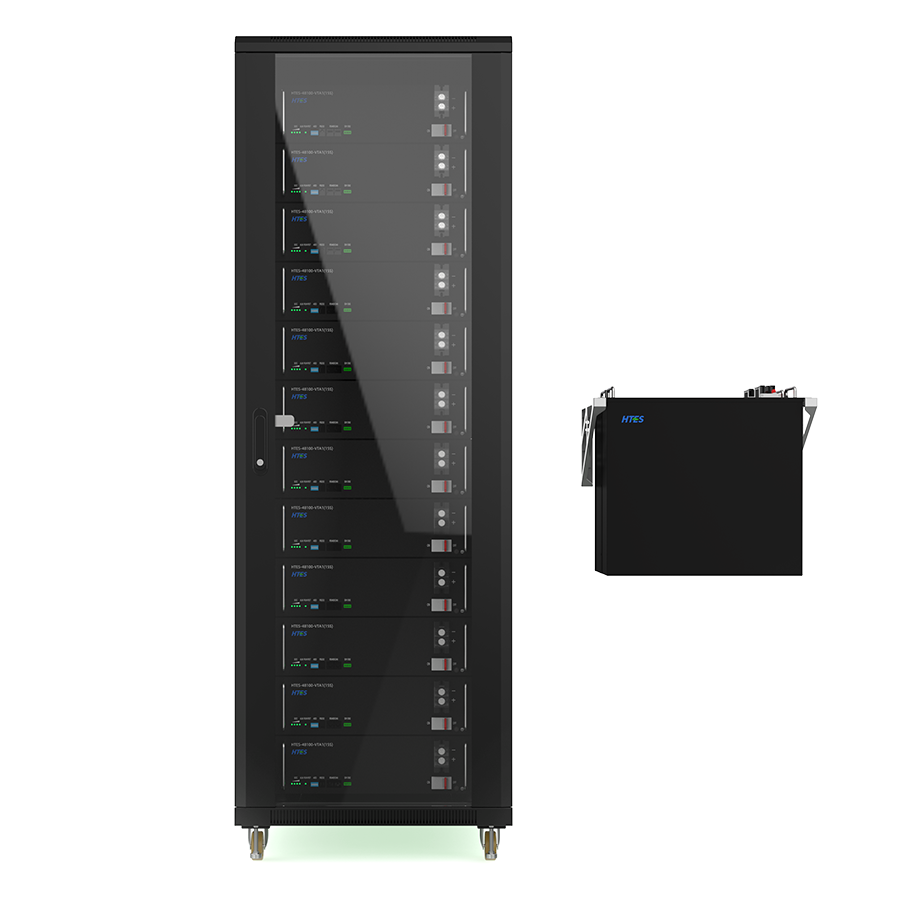

Up to 64 units can be parallel connected at maximum

Excellent Cell Performance

· High cycle counts
· Long service life

MOKE 48100 DATA SHEET

3U standard chassis，High compatibility Accurate SOC algorithm with automatic calibration，Maximum Parallel connection of 15

Model

HTES-48100-VTA1

Cell Type

LFP

Nominal Energy

4.8kWh

Nominal Capacity

100Ah

Nominal Voltage

48V

Operating Voltage Range

40.5V~54V

Dimensions(W*H*D)

445*133.5*450mm

Weight

41kg

Discharge Cut-off Voltage

40.5V

Allowed Humidity Range

<=95% RH

Allowed Operating Temperature Range

0~60℃(Charge) -20~60℃(Discharge)

Max. Continous Charge Current

100A@25℃

Max. Continous Discharge Current

100A@25℃

Recommended Charge Current

20A@25℃

Nominal Charge Voltage

54V

IP20

Expansion

Max. 15 units in parallel

Communication

RS485 CAN/SNMP(Optional)

Cycle Life

3500@80% DOD, 25℃

Certification

UN38.3, UL1973, IEC 62619, IEC 62620，CE-EMC

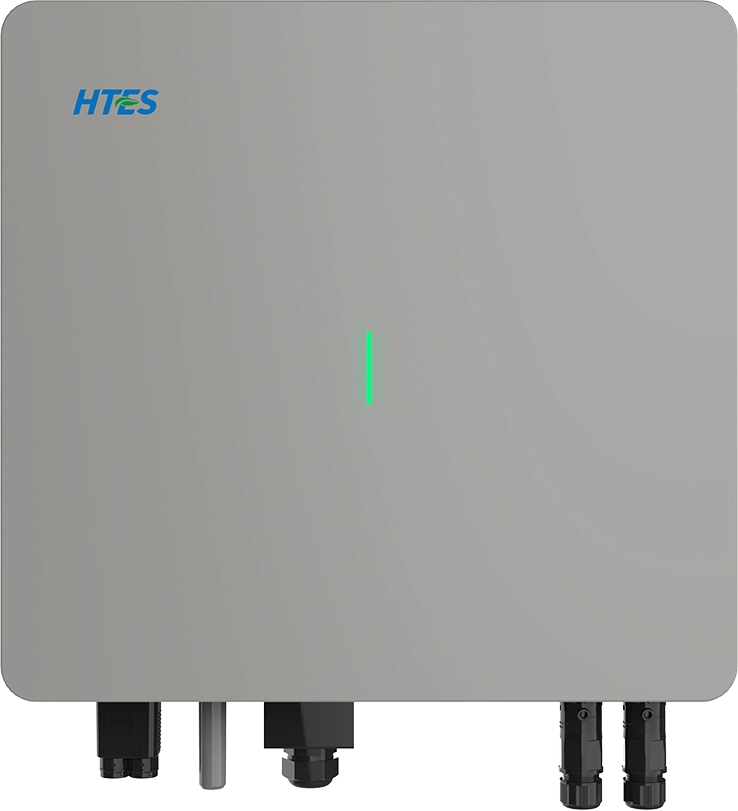

SINGLE-PHASE HYBRID INVERTER

Photovoltaic storage inverters designed for residential small-scale commercial and industrial applications，Small size, high efficiency, with a variety of protection functions，Safe and reliable, stable and intelligent, high protection level up to IP65，Adaptable to most environments。

intelligent monitoring

Cloud + Intelligent Data Analysis; Auto-Hibernation; VPP.

Strong Load Adaptability

Critical load UPS function; 10ms fast parallel off-grid mode switching; independent load control circuit; 100% three-phase unbalance.

high compatibility

15 sets of parallel expansion; support AC coupling; plug and play design, easy installation; 2-way battery branch, independent management.

high reliability

Fanless design, low noise; Silicon carbide technology, longer life; low power consumption, high efficiency, more stable operation; IP65, outdoor design.

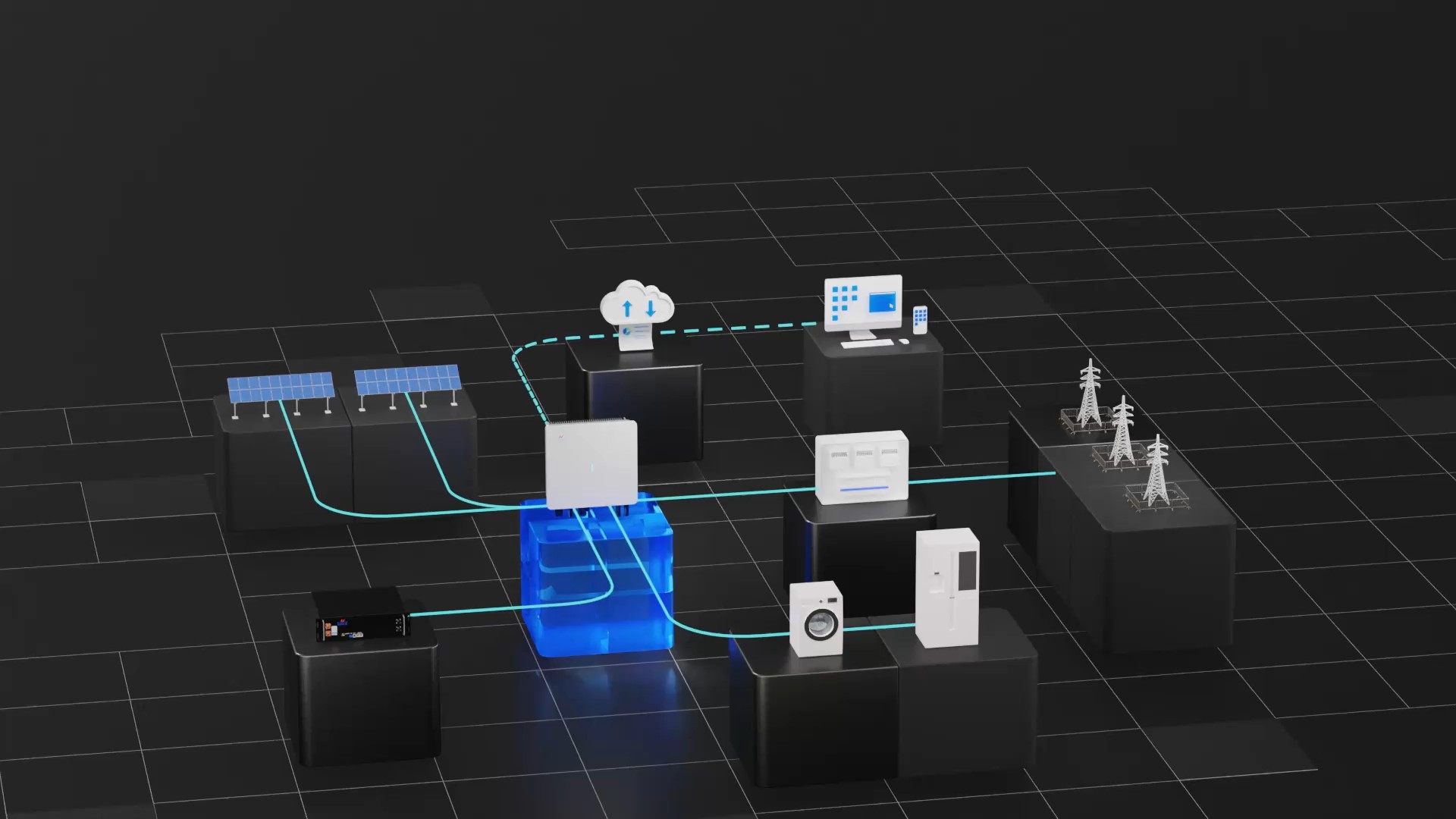

Typical configurations, visualisation

SINGLE-PHASE HYBRID INVERTER

Off-grid parameters

Well network parameters

Photovoltaic input

Battery parameters

efficiency

General parameters

accreditation

HT-HBI-S3SH V1

rated frequency

50/60Hz

Output THDu

＜2%

Rated output current

13.6A

rated voltage

220V/230V/240V

Rated output power

3000W

HT-HBI-S4SH V1

rated frequency

50/60Hz

Output THDu

＜2%

Rated output current

18.2A

rated voltage

220V/230V/240V

Rated output power

4000W

HT-HBI-S5SH V1

rated frequency

50/60Hz

Output THDu

＜2%

Rated output current

22.7A

rated voltage

220V/230V/240V

Rated output power

5000W

HT-HBI-S6SH V1

rated frequency

50/60Hz

Output THDu

＜2%

Rated output current

27.2A

rated voltage

220V/230V/240V

Rated output power

6000W

HT-HBI-S3SH V1

frequency range

45-65Hz

Grid voltage range

184-264V

Maximum grid input current

16.4A

Rated grid-connected voltage

220V/230V/240V

Maximum output current

13.6A

Rated output power

3000W

HT-HBI-S4SH V1

frequency range

45-65Hz

Grid voltage range

184-264V

Maximum grid input current

22.7

Rated grid-connected voltage

220V/230V/240V

Maximum output current

18.2A

Rated output power

4000W

HT-HBI-S5SH V1

frequency range

45-65Hz

Grid voltage range

184-264V

Maximum grid input current

27.2A

Rated grid-connected voltage

220V/230V/240V

Maximum output current

22.7A

Rated output power

5000W

HT-HBI-S6SH V1

frequency range

45-65Hz

Grid voltage range

184-264V

Maximum grid input current

27.2A

Rated grid-connected voltage

220V/230V/240V

Maximum output current

27.2A

Rated output power

6000W

HT-HBI-S3SH V1

Maximum Input Current

13A/13A

Rated Input Voltage

360V

Maximum number of MPPT input strings per channel

Number of MPPTs

Full load MPPT voltage range

350-500V

MPPT voltage operating range

80-550V

Maximum Input Voltage

600V

starting voltage

95V

Maximum Input Power

4500Wp

HT-HBI-S4SH V1

Maximum Input Current

13A/13A

Rated Input Voltage

360V

Maximum number of MPPT input strings per channel

Number of MPPTs

Full load MPPT voltage range

350-500V

MPPT voltage operating range

80-550V

Maximum Input Voltage

600V

starting voltage

95V

Maximum Input Power

6000Wp

HT-HBI-S5SH V1

Maximum Input Current

13A/13A

Rated Input Voltage

360V

Maximum number of MPPT input strings per channel

Number of MPPTs

Full load MPPT voltage range

350-500V

MPPT voltage operating range

80-550V

Maximum Input Voltage

600V

starting voltage

95V

Maximum Input Power

7500Wp

HT-HBI-S6SH V1

Maximum Input Current

13A/13A

Rated Input Voltage

360V

Maximum number of MPPT input strings per channel

Number of MPPTs

Full load MPPT voltage range

350-500V

MPPT voltage operating range

80-550V

Maximum Input Voltage

600V

starting voltage

95V

Maximum Input Power

9000Wp

HT-HBI-S3SH V1

Maximum continuous charge/discharge current

75V

Maximum charging voltage

≤60V

Battery voltage range

42-60V

rated voltage

48V

Battery Type

li-ion battery

HT-HBI-S4SH V1

Maximum continuous charge/discharge current

85A

Maximum charging voltage

≤60V

Battery voltage range

42-60V

rated voltage

48V

Battery Type

li-ion battery

HT-HBI-S5SH V1

Maximum continuous charge/discharge current

100A

Maximum charging voltage

≤60V

Battery voltage range

42-60V

rated voltage

48V

Battery Type

锂电池

HT-HBI-S6SH V1

Maximum continuous charge/discharge current

100A

Maximum charging voltage

≤60V

Battery voltage range

42-60V

rated voltage

48V

Battery Type

li-ion battery

HT-HBI-S3SH V1

Maximum battery charge/discharge efficiency

95.2%

European efficiency

97.2%

Maximum efficiency

97.5%

HT-HBI-S4SH V1

Maximum battery charge/discharge efficiency

95.2%

European efficiency

97.3%

Maximum efficiency

97.8%

HT-HBI-S5SH V1

Maximum battery charge/discharge efficiency

95.2%

European efficiency

97.5%

Maximum efficiency

98%

HT-HBI-S6SH V1

Maximum battery charge/discharge efficiency

95.2%

European efficiency

97.5%

Maximum efficiency

98%

HT-HBI-S3SH V1

safeguard

DC Switching, DC Insulation Detection, Residual Current Detection, Anti-Islanding Protection, Overvoltage Overload Protection, AC Short Circuit Protection Overvoltage Rating: AC Side: Class I, Battery & PV: Class ll, Surge Protection, Lightning Protection: TYPE ll; Input Reverse Plugging Protection (PV & Battery)

communication interface

RS485/CAN/DRED/DO/Parallel port

Human-computer interaction

LED/APPWIFI/4G/Bluetooth

protection class

IP65

Cooling method

natural cooling

operating temperature

-25°C~+60C

static (in a signal)

<25dB(A)

weights

23kg

Size (W*H*T)

500mm*470mm*180mm

HT-HBI-S4SH V1

safeguard

communication interface

RS485/CAN/DRED/DO/Parallel port

Human-computer interaction

LED/APPWIFI/4G/Bluetooth

protection class

IP65

Cooling method

natural cooling

operating temperature

-25°C~+60C

static (in a signal)

<25dB(A)

weights

23kg

Size (W*H*T)

500mm*470mm*180mm

HT-HBI-S5SH V1

safeguard

communication interface

RS485/CAN/DRED/DO/Parallel port

Human-computer interaction

LED/APPWIFI/4G/Bluetooth

protection class

IP65

Cooling method

natural cooling

operating temperature

-25°C~+60C

static (in a signal)

<25dB(A)

weights

23kg

Size (W*H*T)

500mm*470mm*180mm

HT-HBI-S6SH V1

safeguard

communication interface

RS485/CAN/DRED/DO/Parallel port

Human-computer interaction

LED/APPWIFI/4G/Bluetooth

protection class

IP65

Cooling method

natural cooling

operating temperature

-25°C~+60C

static (in a signal)

<25dB(A)

weights

23kg

Size (W*H*T)

500mm*470mm*180mm

HT-HBI-S3SH V1

Grid-connected certification

VDE-AR-N 4105,G98,G99,CEI O-21,EN50549，NRS 097-2-1,AS 4777.2,R25

EMC certification

EN61000-6-1EN61000-6-2EN61000-6-3EN61000-6-4

safety certification

IEC 62109-1,IEC 62109-2, EN 62109-1,EN 62109-2

HT-HBI-S4SH V1

Grid-connected certification

VDE-AR-N 4105,G98,G99,CEI O-21,EN50549，NRS 097-2-1,AS 4777.2,R25

EMC certification

EN61000-6-1EN61000-6-2EN61000-6-3EN61000-6-4

safety certification

IEC 62109-1,IEC 62109-2, EN 62109-1,EN 62109-2

HT-HBI-S5SH V1

Grid-connected certification

VDE-AR-N 4105,G98,G99,CEI O-21,EN50549，NRS 097-2-1,AS 4777.2,R25

EMC certification

EN61000-6-1EN61000-6-2EN61000-6-3EN61000-6-4

safety certification

IEC 62109-1,IEC 62109-2, EN 62109-1,EN 62109-2

HT-HBI-S6SH V1

Grid-connected certification

VDE-AR-N 4105,G98,G99,CEI O-21,EN50549，NRS 097-2-1,AS 4777.2,R25

EMC certification

EN61000-6-1EN61000-6-2EN61000-6-3EN61000-6-4

safety certification

IEC 62109-1,IEC 62109-2, EN 62109-1,EN 62109-2

Backup Power Solution for Base Stations

SMART BACKUP POWER, GREEN COMMUNICATION, SMOOTH AND WORRY-FREE
