Product Series

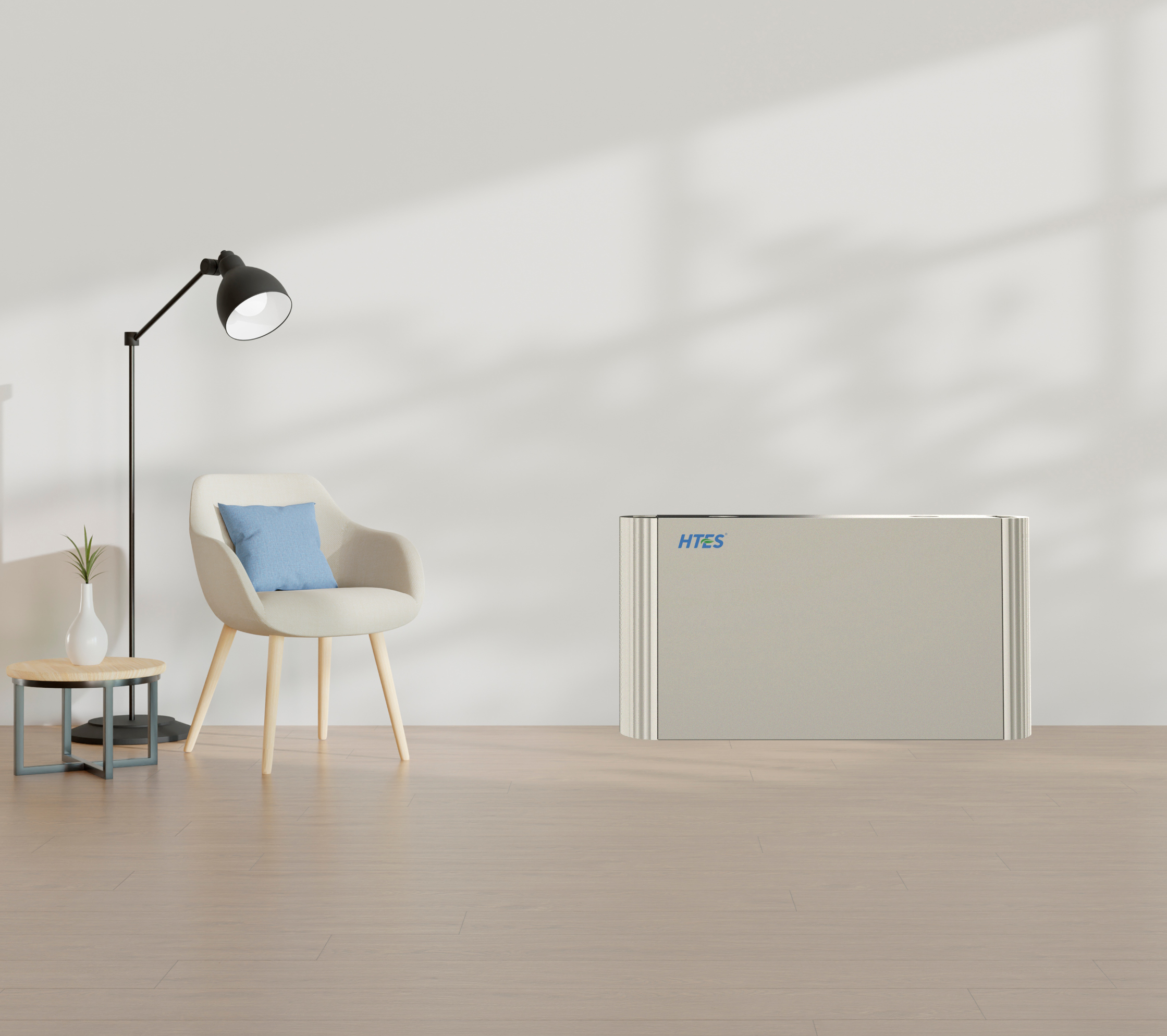

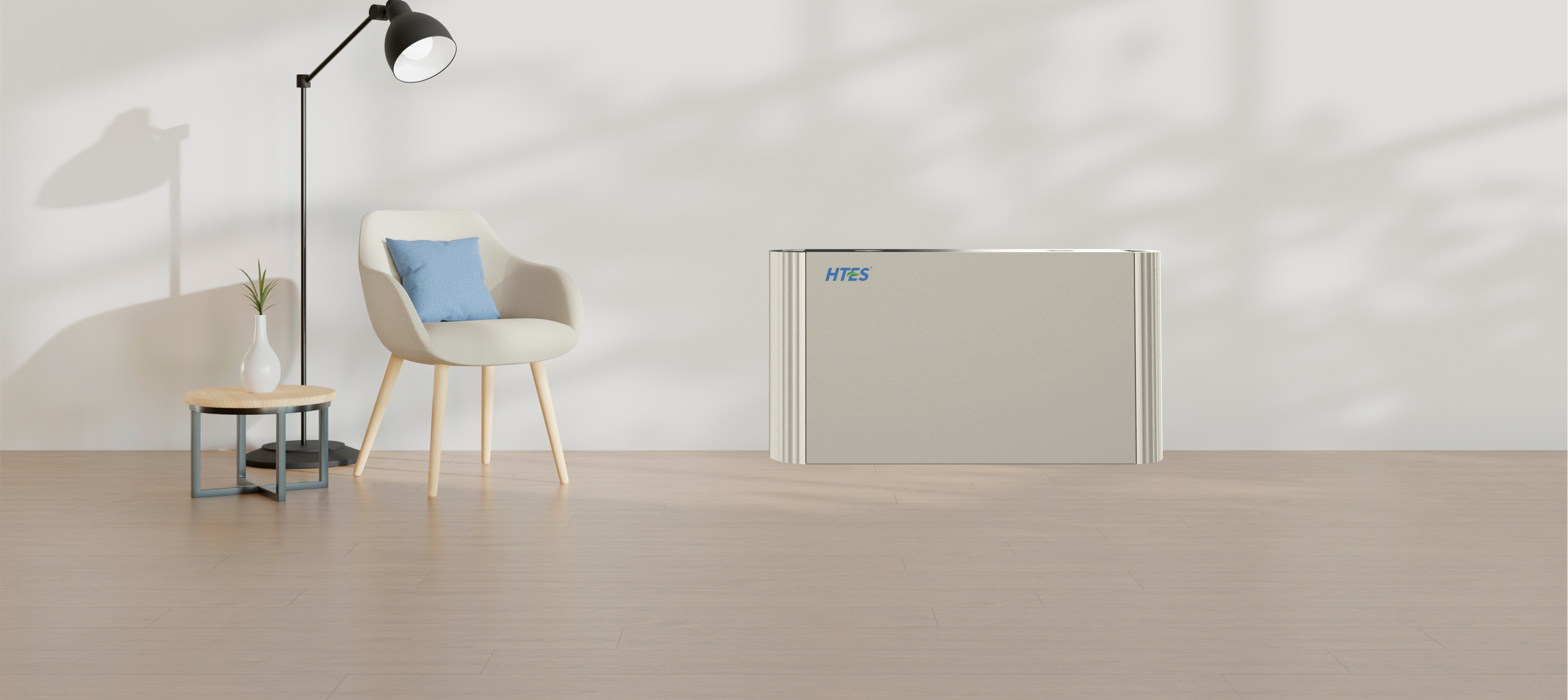

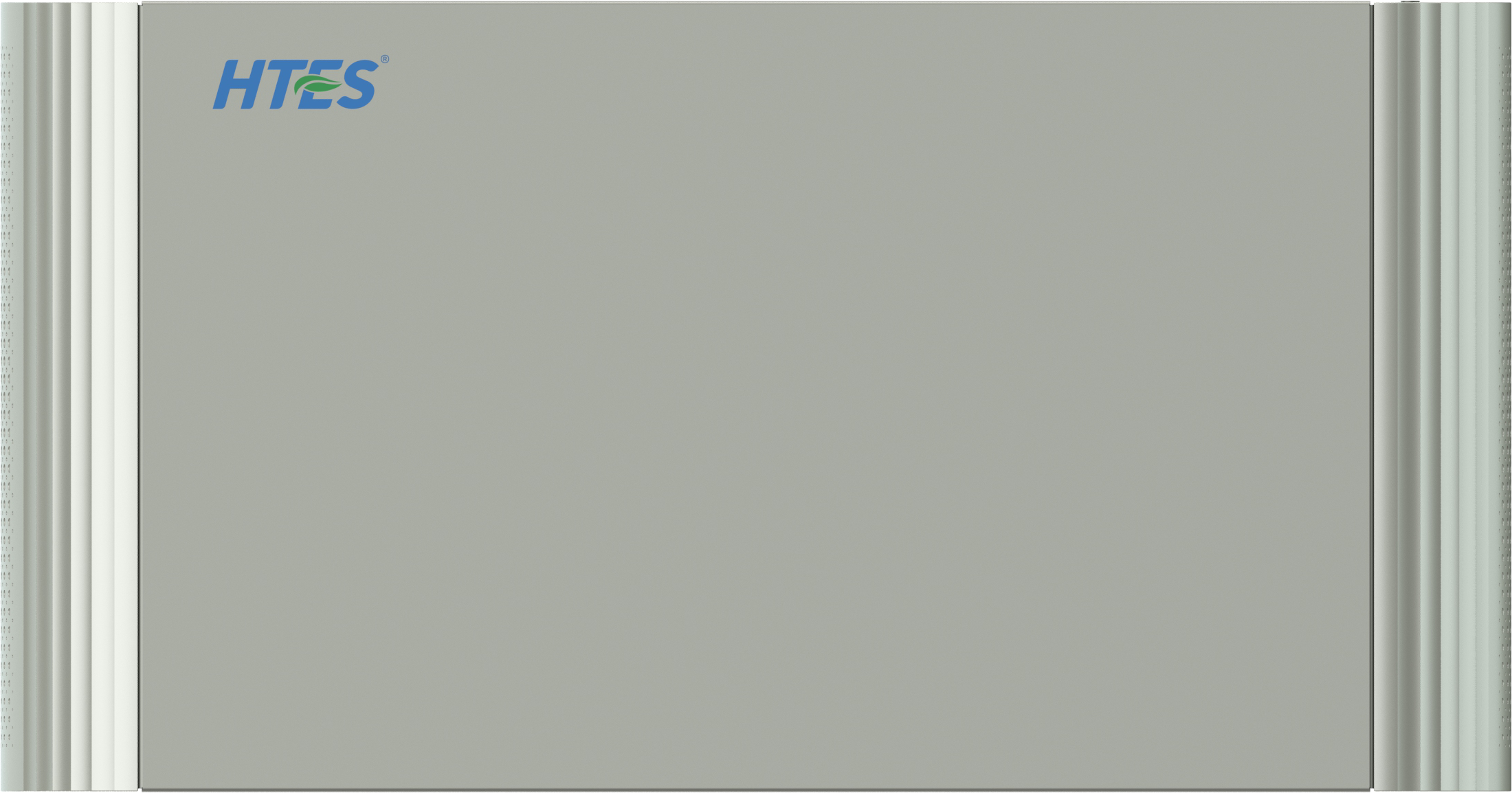

HELIOS H5000

Modular

HTBP-48V100

Rated Voltage

51.2V

Voltage Range

44.8V-57.6V

Rated Energy

5.12kWh @0.2C,25℃

Rated DC power

2.56kW

Usable Energy

4.10kWh @0.2C,25℃

Charge/Discharge Current

Standard 50A @25℃

DoD

80%

Scalability

5.12/10.24/15.36/20.48

Protection Features

Overvoltage/Undervoltage/Overcurrent/Short Circuit/ Over Temperature/Under Temperature Protection

IP

IP54

Cycle Life

≥6000Cycle 80%DOD,@25℃

Dimensions (W*H*D)

652*365*152mm （Size with decorative cover included：700*365*152mm）

Weight

45±1kg

Operating Temperature

charge：0~ +45°C，discharge：-20~ +45℃

Altitude

0~4000m(Derating applies above 2000m

Warranty

10 years（@80%DoD@0.2C@25℃）

Transportation

UN38.3

Certification

IEC 62619(Cell) IEC 63056(Pack) IEC 62619(Pack) IEC 62040(Pack)
