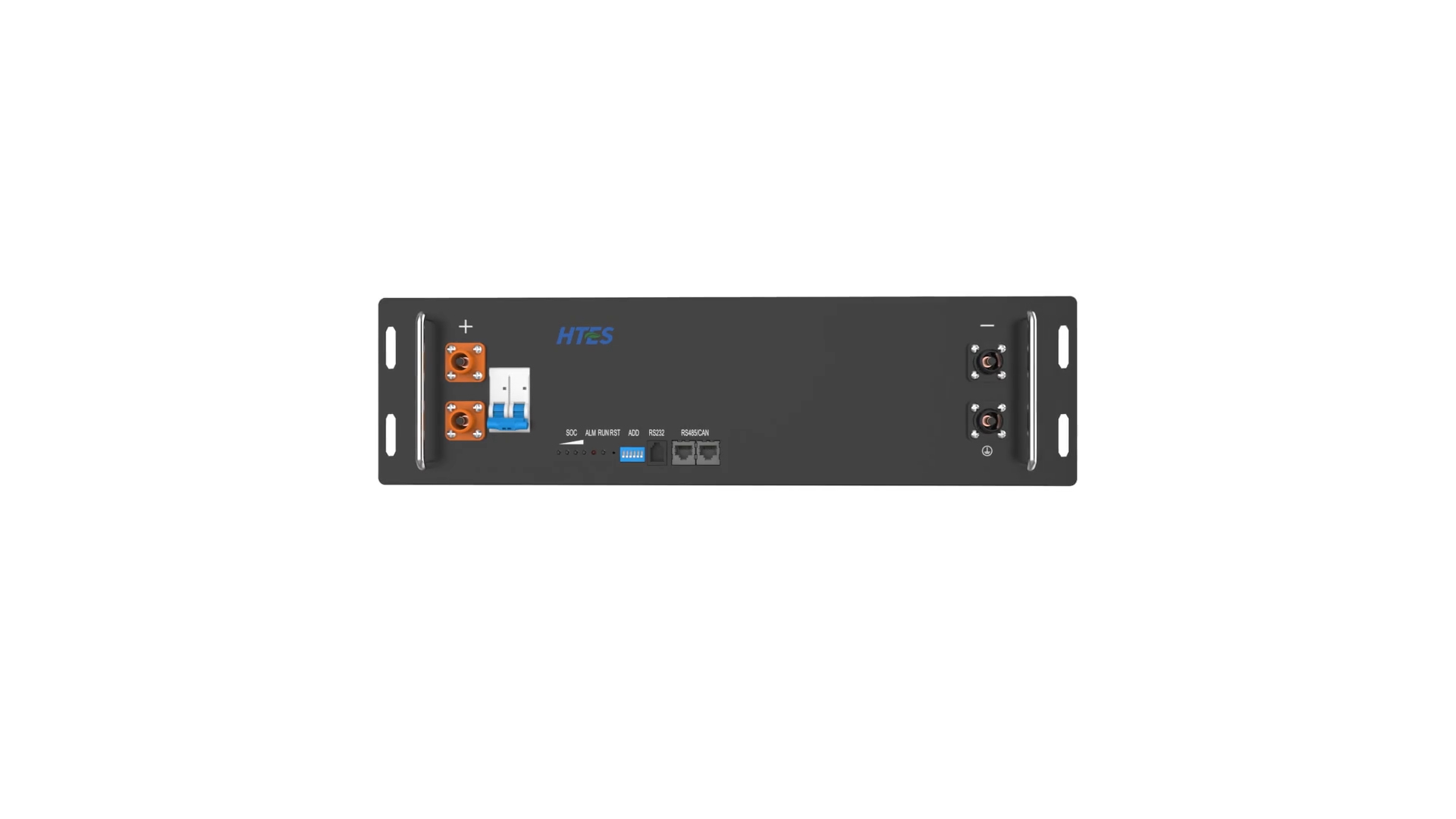

HELIOS H48100

The HELIOS 48100 adopts a 3U standard chassis design, which is highly compatible. It has a wide operating temperature range, low loss, and high efficiency. The advanced BMS management system has a precise SOC algorithm that can be automatically calibrated. The quick-connect terminal design makes it plug-and-play and is widely used in homes, small businesses, and nomadic areas.

3U Standard Chassis, High Compatibility

Advanced Battery Management System, Safe and Reliable

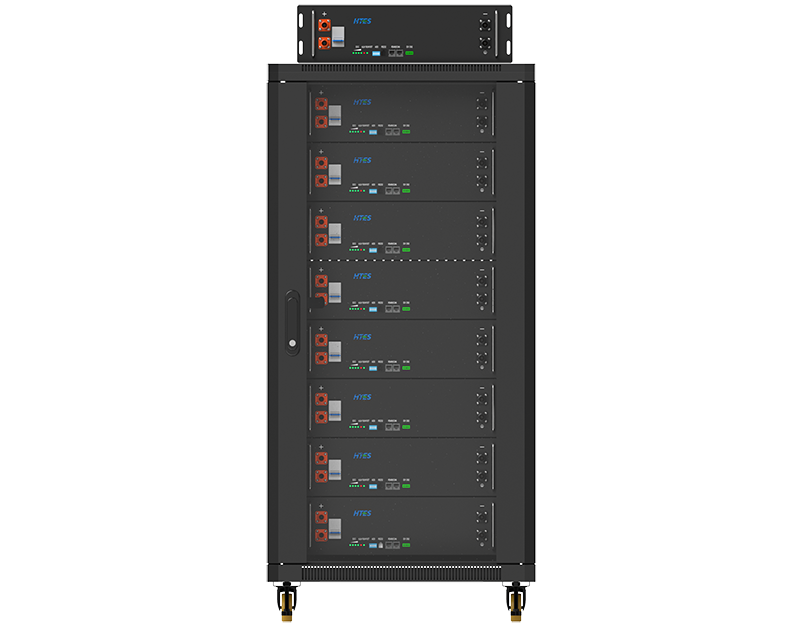

Maximum of 32 Parallel Units

Real-time Cell Monitoring

Precise SOC Algorithm, Automatic Calibration

High Cell Consistency, Extended Battery Life

Quick-connect Terminal Design

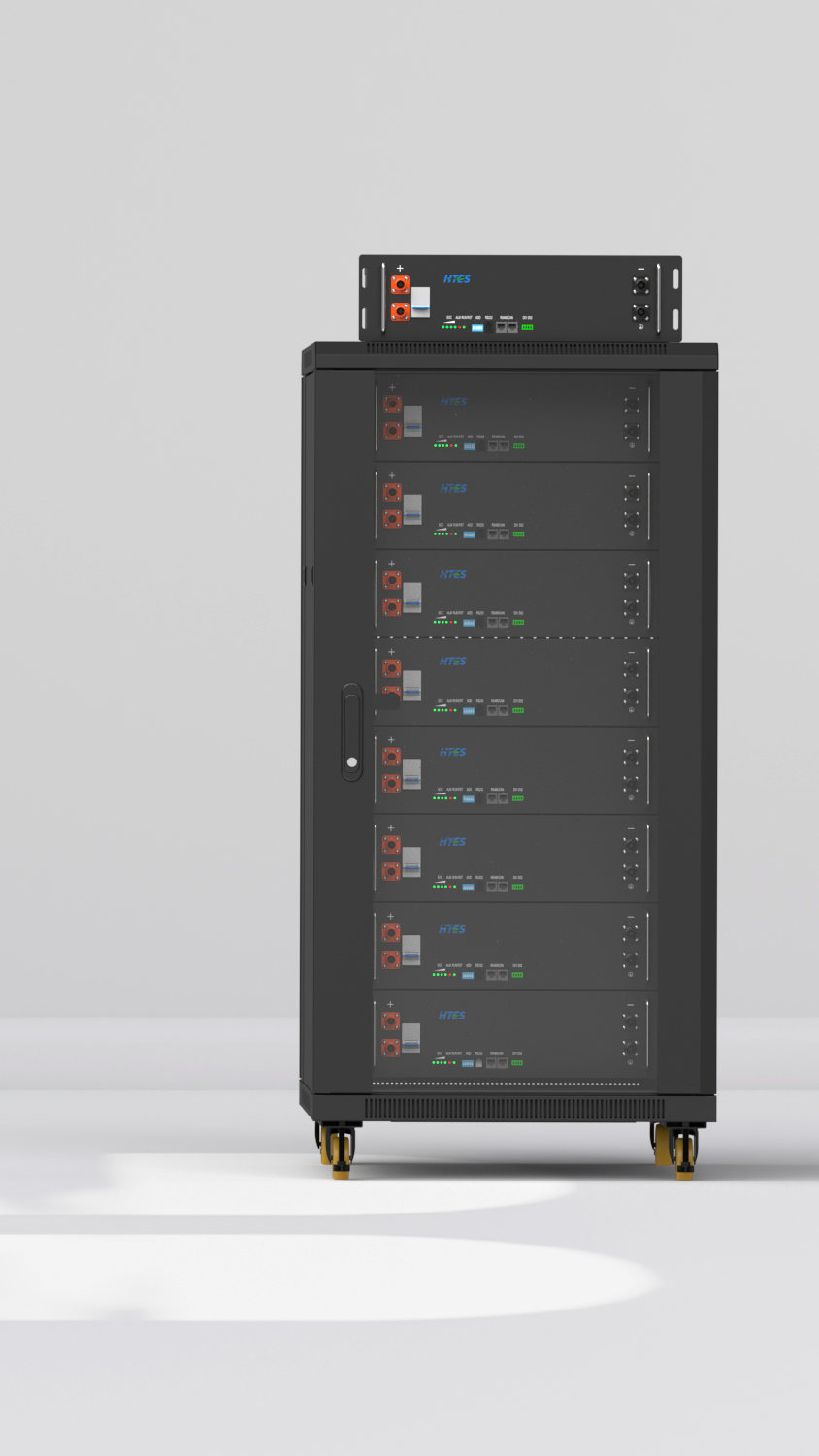

Multiple Installation Methods

HELIOS 48100 DATA SHEET

Advanced battery production technology with multiple performances such as wide temperature range，ow loss, high efficiency, cluster temperature control system，plug-and-play replacement，safe and reliable, high energy density and long lifespan。

Battery Type

LiFePO4

Nominal Capacity

100.0 Ah

Nominal Voltage

51.2 V

Nominal Energy

5.12kWh

Rated Charge Voltage

56.8 V

Max. Continuous Charge Current

50 A（1C）

Discharge Cut-off Voltage

42 V

Allowed OperationTemperature Range

Charging: 3-55°C Discharging：-20~55°C

Weight

Approx. 41 kg

Cycle life

6000 cycles

Relative Humidity

<95% RH

Safety

IEC 62619;ENIEC 61000-6-1/2/3/4

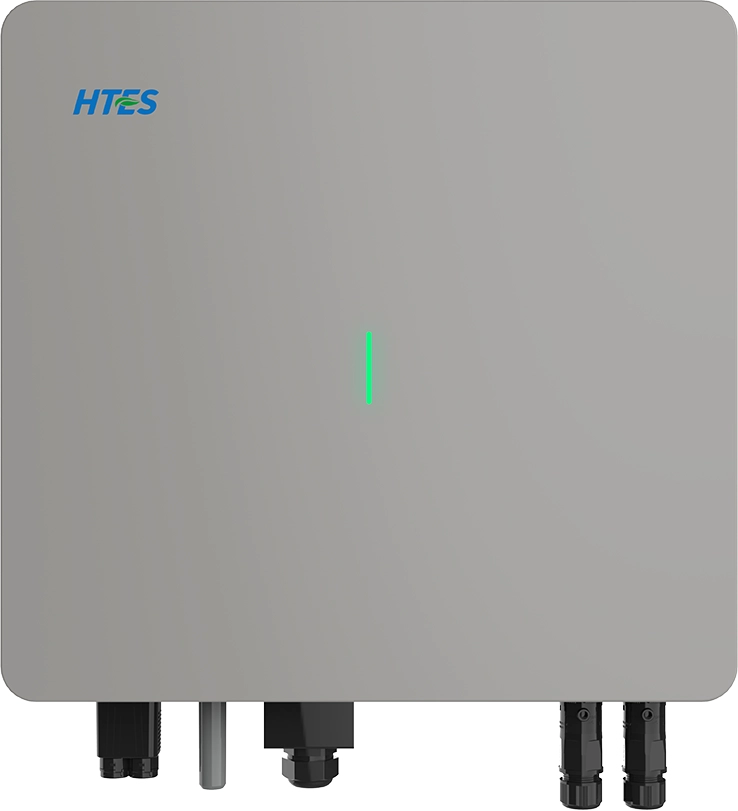

RESIDENTIAL SINGLE-PHASE HYBRID INVERTER

Photovoltaic Energy Storage Integrated Inverter is specifically designed for residential and small-scale commercial applications，It features a compact size, high efficiency, multiple protection functions, safety, reliability，Stable intelligence, and a high protection rating of up to IP65，Making it suitable for various usage environments。

Millisecond-level switching between grid-connected and off-grid modes,supporting seamless and uninterrupted intelligent switching.

Two charging modes available: photovoltaic and grid power.

Operates worry-free at high altitudes, fearless in harsh conditions such as severe cold, ensuring stable and reliable performance.

Supports Virtual Power Plant (VPP)

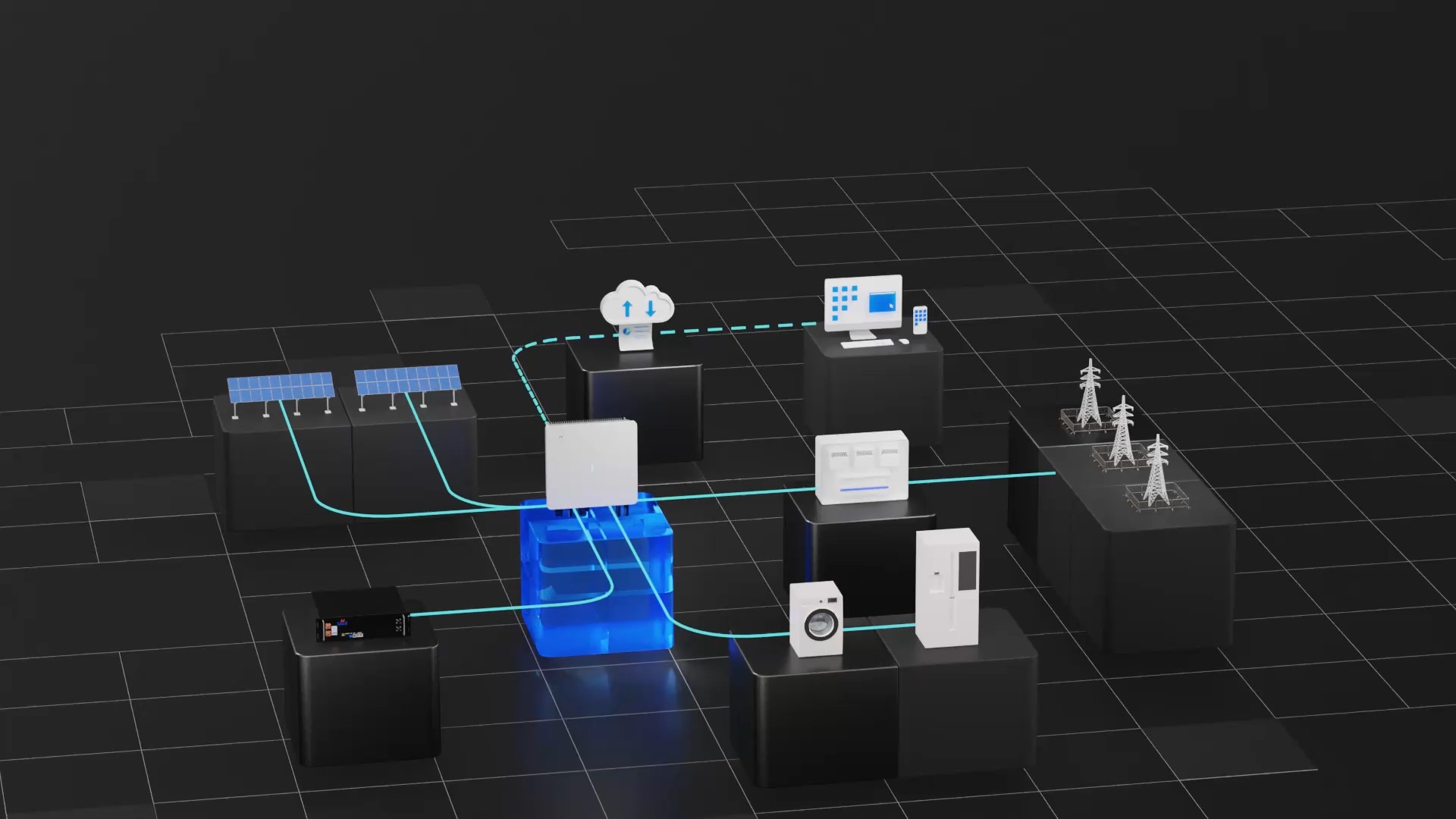

TYPICAL APPLICATION SCENARIOS

SINGLE-PHASE HYBRID INVERTER PARAMETERS TABLE

Off-grid parameters

Well network parameters

Photovoltaic input

Battery parameters

efficiency

General parameters

accreditation

HT-HBI-S3SH V1

Rated output power

3000W

rated voltage

220V/230V/240V

rated frequency

50/60Hz

Rated output current

13.6A

Output THDu

<2%

HT-HBI-S4SH V1

Rated output power

4000W

rated voltage

220V/230V/240V

rated frequency

50/60Hz

Rated output current

18.2A

Output THDu

<2%

HT-HBI-S5SH V1

Rated output power

5000W

rated voltage

220V/230V/240V

rated frequency

50/60HZ

Rated output current

22.7A

Output THDu

<2%

HT-HBI-S6SH V1

Rated output power

6000W

rated voltage

220V/230V/240V

rated frequency

50/60HZ

Rated output current

27.2A

Output THDu

<2%

HT-HBI-S3SH V1

Rated output power

3000W

Maximum output current

13.6A

Rated grid-connected voltage

220V/230V/240V

Maximum grid input current

16.4A

Grid voltage range

184-264V

frequency range

45-65HZ

HT-HBI-S4SH V1

Rated output power

4000W

Maximum output current

18.2A

Rated grid-connected voltage

220V/230V/240V

Maximum grid input current

22.7A

Grid voltage range

184-264V

frequency range

45-65HZ

HT-HBI-S5SH V1

Rated output power

5000W

Maximum output current

22.7A

Rated grid-connected voltage

220V/230V/240V

Maximum grid input current

27.2A

Grid voltage range

184-264V

frequency range

45-65HZ

HT-HBI-S6SH V1

Rated output power

6000W

Maximum output current

27.2A

Rated grid-connected voltage

220V/230V/240V

Maximum grid input current

27.2A

Grid voltage range

184-264V

frequency range

45-65HZ

HT-HBI-S3SH V1

Maximum Input Power

4500Wp

starting voltage

95V

Maximum Input Voltage

600V

MPPT voltage operating range

80-550V

Full load MPPT voltage range

350-500V

Number of MPPTs

Maximum number of MPPT input strings per channel

Rated Input Voltage

360V

Maximum Input Current

13A/13A

HT-HBI-S4SH V1

Maximum Input Power

6000Wp

starting voltage

95V

Maximum Input Voltage

600V

MPPT voltage operating range

80-550V

Full load MPPT voltage range

350-500V

Number of MPPTs

Maximum number of MPPT input strings per channel

Rated Input Voltage

360V

Maximum Input Current

13A/13A

HT-HBI-S5SH V1

Maximum Input Power

7500Wp

starting voltage

95V

Maximum Input Voltage

600V

MPPT voltage operating range

80-550V

Full load MPPT voltage range

350-500V

Number of MPPTs

Maximum number of MPPT input strings per channel

Rated Input Voltage

360V

Maximum Input Current

13A/13A

HT-HBI-S6SH V1

Maximum Input Power

9000Wp

starting voltage

95V

Maximum Input Voltage

600V

MPPT voltage operating range

80-550V

Full load MPPT voltage range

350-500V

Number of MPPTs

Maximum number of MPPT input strings per channel

Rated Input Voltage

360V

Maximum Input Current

13A/13A

HT-HBI-S3SH V1

Battery Type

li-ion battery

rated voltage

48V

Battery voltage range

42-60V

Maximum charging voltage

≤60V

Maximum continuous charge/discharge current

75A

HT-HBI-S4SH V1

Battery Type

li-ion battery

rated voltage

48V

Battery voltage range

42-60V

Maximum charging voltage

≤60V

Maximum continuous charge/discharge current

85A

HT-HBI-S5SH V1

Battery Type

li-ion battery

rated voltage

48V

Battery voltage range

42-60V

Maximum charging voltage

≤60V

Maximum continuous charge/discharge current

100A

HT-HBI-S6SH V1

Battery Type

li-ion battery

rated voltage

48V

Battery voltage range

42-60V

Maximum charging voltage

≤60V

Maximum continuous charge/discharge current

100A

HT-HBI-S3SH V1

Maximum efficiency

97.5%

European efficiency

97.2%

Maximum battery charge/discharge efficiency

95.2%

HT-HBI-S4SH V1

Maximum efficiency

97.8%

European efficiency

97.3%

Maximum battery charge/discharge efficiency

95.2%

HT-HBI-S5SH V1

Maximum efficiency

98.0%

European efficiency

97.5%

Maximum battery charge/discharge efficiency

95.2%

HT-HBI-S6SH V1

Maximum efficiency

98.0%

European efficiency

97.5%

Maximum battery charge/discharge efficiency

95.2%

HT-HBI-S3SH V1

Size (W*H*T)

500mm*470mm*180mm

weights

23kg

static (in a signal)

<25dB(A)

operating temperature

-25℃~+60℃

Cooling method

自然散热

protection class

IP65

Human-computer interaction

LED/APP/WIFI/4G/蓝牙

communication interface

RS485/CAN/DRED/DO/Parallel port

safeguard

直流开关；直流绝缘检测；残余电流检测:防孤岛保护；过压过载保护；交流短路保护；过电压等级：交流侧：Ⅲ级，电池及PV：Ⅱ级；浪涌保护；防雷保护：TYPEⅡ；输入反插保护 (PV & 电池)

HT-HBI-S4SH V1

Size (W*H*T)

500mm*470mm*180mm

weights

23kg

static (in a signal)

<25dB(A)

operating temperature

-25℃~+60℃

Cooling method

自然散热

protection class

IP65

Human-computer interaction

LED/APP/WIFI/4G/蓝牙

communication interface

RS485/CAN/DRED/DO/Parallel port

safeguard

HT-HBI-S5SH V1

Size (W*H*T)

500mm*470mm*180mm

weights

23kg

static (in a signal)

<25dB(A)

operating temperature

-25℃~+60℃

Cooling method

自然散热

protection class

IP65

Human-computer interaction

LED/APP/WIFI/4G/蓝牙

communication interface

RS485/CAN/DRED/DO/Parallel port

safeguard

HT-HBI-S6SH V1

Size (W*H*T)

500mm*470mm*180mm

weights

23kg

static (in a signal)

<25dB(A)

operating temperature

-25℃~+60℃

Cooling method

自然散热

protection class

IP65

Human-computer interaction

LED/APP/WIFI/4G/蓝牙

communication interface

RS485/CAN/DRED/DO/Parallel port

safeguard

HT-HBI-S3SH V1

safety certification

IEC 62109-1,IEC 62109-2,EN 62109-1,EN 62109-2

EMC certification

EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4

Grid-connected certification

VDE-AR-N 4105,G98,G99,CEI 0-21,EN50549,NRS 097-2-1,AS 4777.2,R25

HT-HBI-S4SH V1

safety certification

IEC 62109-1,IEC 62109-2,EN 62109-1,EN 62109-2

EMC certification

EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4

Grid-connected certification

VDE-AR-N 4105,G98,G99,CEI 0-21,EN50549,NRS 097-2-1,AS 4777.2,R25

HT-HBI-S5SH V1

safety certification

IEC 62109-1,IEC 62109-2,EN 62109-1,EN 62109-2

EMC certification

EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4

Grid-connected certification

VDE-AR-N 4105,G98,G99,CEI 0-21,EN50549,NRS 097-2-1,AS 4777.2,R25

HT-HBI-S6SH V1

safety certification

IEC 62109-1,IEC 62109-2,EN 62109-1,EN 62109-2

EMC certification

EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4

Grid-connected certification

VDE-AR-N 4105,G98,G99,CEI 0-21,EN50549,NRS 097-2-1,AS 4777.2,R25
